Safety isolating transformers connect to the 230v mains supply and provide an output at 110v.
It can be tricky to select the correct 110v transformer for use with emergency vehicle shoreline system, as the power output rating published on websites tends to be that for intermittent use. With emergency vehicles, the transformer has to be able to continually provide sufficient current. Known as the continual rating, this is often significantly less than the intermittent rating.
Our range of high quality branded transformers have been selected to have a high continual rating and are available as a fixed or portable unit.

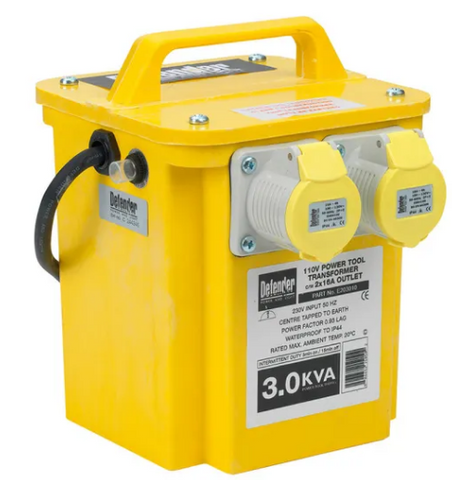

Portable transformer:
- Portable safety isolating transformer.
- Continuous rating 3kVA.
- Intermittent rating 1.65kVA (5mins on, 15mins off).
- Thermal overload protection.
- 2 x 110 Volt 16 amp outlets.
- IP44 yellow glass reinforced plastic enclosure.
- 2m H07RN-F cable with 13A UK plug.
- Manufactured to EN60742 & BS3535.
- Size: H265mm (including handle) x W200mm x D200mm.
- 15.3kg.
- Brand may vary subject to availability.
Fixed installation wall mounted transformer:
- Wall mounting safety isolating transformer.
- Continuous rating 3kVA.
- Intermittent rating 1.6kVA (5mins on, 15mins off).
- Thermal overload protection.
- 2 x 110 Volt 16 amp outlets.
- IP22 metal enclosure.
- Manufactured to EN60742 & BS3535.
- Size: H255mm x W255mm x D240mm.
Due to their weight, transformers will be sent in a separate box to any other items ordered and may be dispatched directly from the manufacturer.
