When travelling across Europe and Scandinavia, there are two options to charge using a granny charger:
- If you already have a granny charger with a UK plug and a 10A max charge rate is workable, then your existing charger can be used in conjunction with an adaptor.
- If you don't already have a UK granny charger OR you would benefit from a 16A (20% faster) charge rate, then the unit below provides an ideal solution.

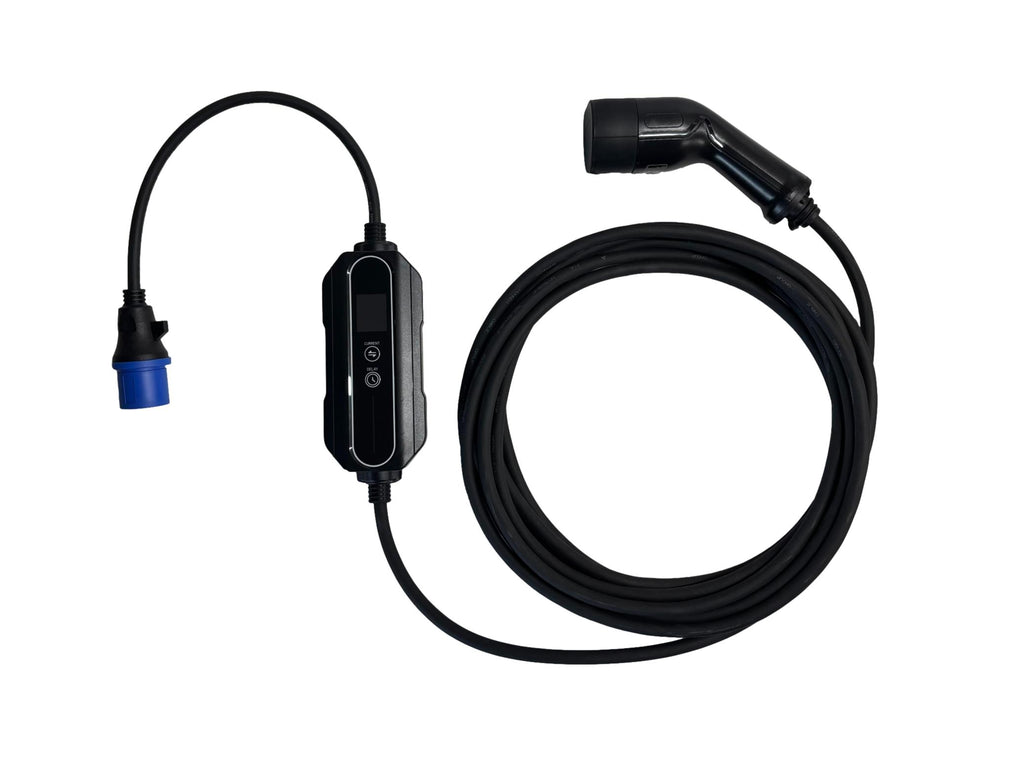

The 16A granny charger is fitted with a 230v 16A commando plug, which can be connected directly to the standard socket provided at camp sites and marinas across the UK, Europe and Scandinavia.
The illustration below shows the charger used in conjunction with a European adaptor. Adaptors are available with four different types of plug, to enable use across a wide range of sockets.
If a longer cable length is required, the charger can be used in conjunction with a heavy duty IEC60309 commando extension.
The charger is fitted with a IEC60309 commando plug, which is compatible with the matching socket commonly found at campsites and industrial premises.
|
43mm diameter |
230v 16A IEC60309 Commando Sockets
Granny charger fits directly into this socket found at campsites and marinas across the UK and Europe without the need for an adaptor. |
To use the charger in Europe and Scandanavia, one of the adaptors below must also be purchased.
|
Schuko
French
|
Universal Schuko/French Adaptor The universal CEE 7/7 adaptor fits both Schuko and French types sockets and is the main adaptor required for the majority of Europe and Scandinavia.
|
|
Traditional Italian Socket New Bipasso Socket
|
Italian Adaptor Adaptor fits the traditional 16A Italian and the newer Bipasso socket.
|
 |
Swiss Adaptor Adaptor fits the 16A socket used in Switzerland and Liechtenstein.
|
 |
Danish Adaptor Adaptor fits the 16A socket used in Denmark and Greenland.
|
Charger specification:
- Adjustable charging rate 6A, 8A, 10A, 13A and 16A.
- Programmable delay in charging starting (by pressing a button each time), in order to take advantage of cheaper overnight tariffs. Adjust up to 12hrs in 1hr intervals.
- Advanced fault detection.
- Inbuilt type B RCD with 30mA AC and 6mA DC protection.
- Extremely robust enclosure, IP67 rated (protected against powerful water jets from any direction).
- Heavy duty H07BZ-F rubber cable.
- A storage bag is available separately.
Adaptor specification:
- Splash proof IP44 rated high quality German manufactured Menneke 230v 16A socket.
- 0.3m industrial specification H07RN-F rubber cable, specifically manufactured for harsh environments with high mechanical, chemical, water and UV resistance. Flexibility and performance is retained over a wide temperature range (-25 to 55°C).
