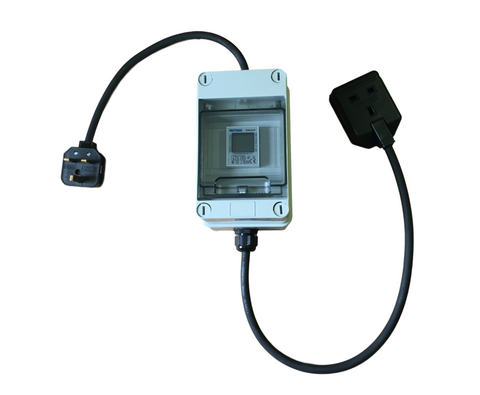

13A kWh MID approved meter for measuring EV charging or hot tub use

  • Sale
  • Regular price £82.99


Developed in response to customer demand for a compact, robust weatherproof kWh meter, suitable for measuring the electricity used by an EV when charging. Useful when charging a company vehicle at home, so that electricity usage can be accurately reported using a MID certified meter. May also be useful for measuring the total power used by a hot tub, particularly if using a site supply when metering is required.

See our Power Meter Selection Guide for further information.

A padded bag is available separately to store the meter between use.



Meter specification:

  • Digital kWh meter, with class 1 accuracy.
  • MID B&D approved, which is the certification required for a meter to be used for sub-billing applications.
  • Cumulative kWh reading is retained permanently, even if the power is removed for long periods of time.
  • Pressing the push button toggles the meter between displaying:
    • Non-resettable total kWh
    • Resettable total kWh
    • Import kWh
    • Export kWh
    • Power (W)
    • Voltage (V)
    • Current (A)
  • Download meter component manual.

Unit specification:

  • 13A plug, with the option of a heavy duty socket for use indoors, or an IP66 rated socket for use outdoors.
  • Gewiss robust IP55 weatherproof DIN enclosure (overall dimensions W105mm x H170mm x D98mm).
  • 0.6m input and 0.3m output leads, using industrial specification H07RN-F rubber cable, specifically manufactured for harsh environments with high mechanical, chemical, water and UV resistance. Flexibility and performance is retained over a wide temperature range (-25 to 55°C). Find out what’s so special about this cable
  • Please contact us for custom cable lengths.
  • PAT tested.
