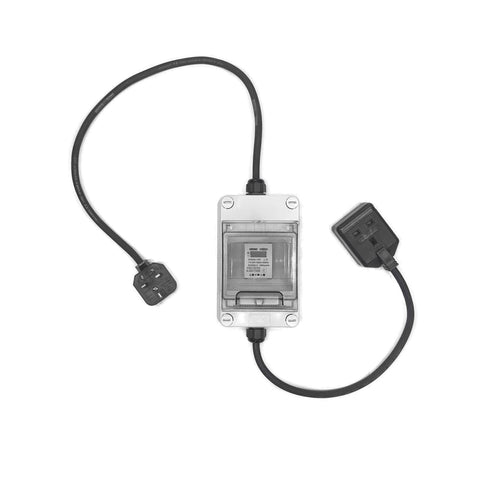

Manufactured in our UK workshop, this versatile meter simply plugs in to any 13A socket and provides reliable digital metering with some useful advanced functions:
- LCD display on the meter unit.
- Unit connects via Wi-Fi to enable live/cumulative readings and reports over time to be viewed on any phone or tablet.
- The appliance connected to it can be turned on and off via Wi-Fi, offering full remote control.
A Wi-Fi connection is required to enable the unit to be switched on/off, the timer to be programmed or the meter readings to be accessed remotely. However, once programmed, the timer function will continue to operate without Wi-Fi and the on-board screen shows the meter readings.
See our Power Meter Selection Guide for further information.
Meter specification:
- Digital kWh meter, with class 1 accuracy.
- The following measurements can be read on the meter display:
- Remote monitoring is limited to kWh, current, voltage and active power using the Tuya or Smart Life APP.
- Remote control of the appliance connected to the meter via the app, including timers and delay off functions.
- Can be integrated with Google Home, Amazon Alexa and other Wi-Fi based platforms.
ed.
Unit specification:
- 13A plug, with the option of a heavy duty socket for use indoors, or an IP66 rated socket for use outdoors.
- Gewiss robust IP55 weatherproof DIN enclosure (overall dimensions W105mm x H170mm x D98mm).
- 0.6m input and 0.3m output leads, using industrial specification H07RN-F rubber cable, specifically manufactured for harsh environments with high mechanical, chemical, water and UV resistance. Flexibility and performance is retained over a wide temperature range (-25 to 55°C). Find out what’s so special about this cable.
- Please contact us for custom cable lengths.
- Also available with a black enclosure.
- PAT tested.
Manual:
- Click here for the manual.
 |
A padded bag is available separately to store the meter between use. |
