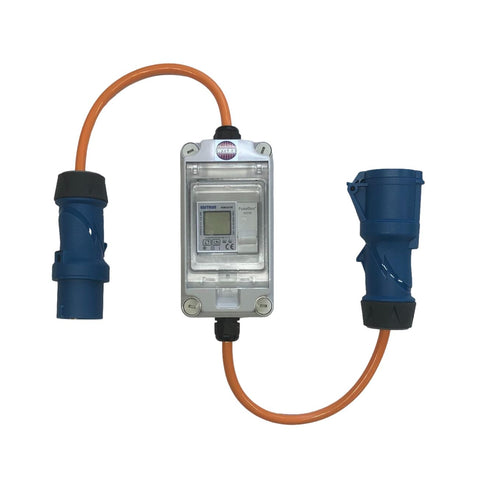

Developed in response to customer demand for a compact, robust weatherproof kWh meter, suitable for use with motorhome/caravan pitch connections. Manufactured in our UK workshop, these units provide exceptional quality connectors, cable and a digital MID certified meter in a weatherproof enclosure.
Please see our guide for the definitive source of information on connecting caravans and motorhomes to campsites, domestic sockets, generators and EV charging points across the UK, Europe and Scandinavia.
Meter specification:
- Digital kWh meter, with class 1 accuracy.
- MID B&D approved, which is the certification required for a meter to be used for sub-billing applications.
- Cumulative kWh reading is retained permanently, even if the power is removed for a long period of time.
- Pressing the push button toggles the meter between displaying the live power usage, a resettable kWh reading and a non-resettable (by any means) cumulative kWh reading.
- Download meter component manual.
Unit Specification:
- Heavy duty German manufactured Menneke 230v 16A CEE IEC60309 commando connectors.
- Robust compact IP65 rated weatherproof enclosure (6 = complete dust protection, 5 = protected against water jets from any direction).
- Dimensions W105mm x H158mm x D115mm.
- 0.5m (approx) total length heavy duty 2.5mmsq H07BQ-F orange rubber cable. This marine grade cable is simply in a different league to the normal blue artic cable. It offers extremely high resistance to UV, oil and mechanical damage, remaining flexible down to -40C.
- We do not use artic blue cable as it offers poor resistance to UV, oil and mechanical damage and should not be used below -5C (see IET article).
- PAT tested.
We offer a range of cable storage solutions to keep your lead neat and tidy.
