Developed to provide weatherproof plug-in Wi-Fi control of appliances and lights with black 230v 16A CEE IEC60309 (commando) and European Schuko/French connectors. Ideal for commercial Christmas lights which use 230v 16A CEE connectors.
The unit can be programmed using either the Tuya or Smart Life App and can be integrated with Google Home, Amazon Alexa and other Wi-Fi based platforms. Functions within the Smart Life App include:
- Manual off/off control via any IoS Apple or Android phone or tablet.
- Countdown timer - The unit will turn on after the pre-set time.
- Maximum duration timer - When turned on the unit will only operate for a defined maximum period of time.
- Scheduled timer e.g. On Monday 07:00, off Monday 17:00.
- Random timer - Unit will turn on and off randomly during pre-set times.
- Scenes - Can be triggered by a separate (not supplied) senor or Wi-Fi button e.g. a PIR sensor.
- Please contact us for alternative Zigbee or eWeLink versions.
A Wi-Fi connection is required to enable the unit to be switched on/off, or for the timer to be programmed. However, once programmed, the timer function will continue to operate without Wi-Fi. Where Wi-Fi is not available at all, a stand alone plug in timer is also available here.
Lead specification:

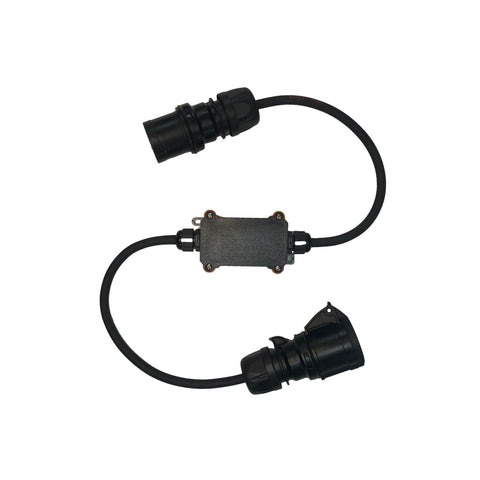

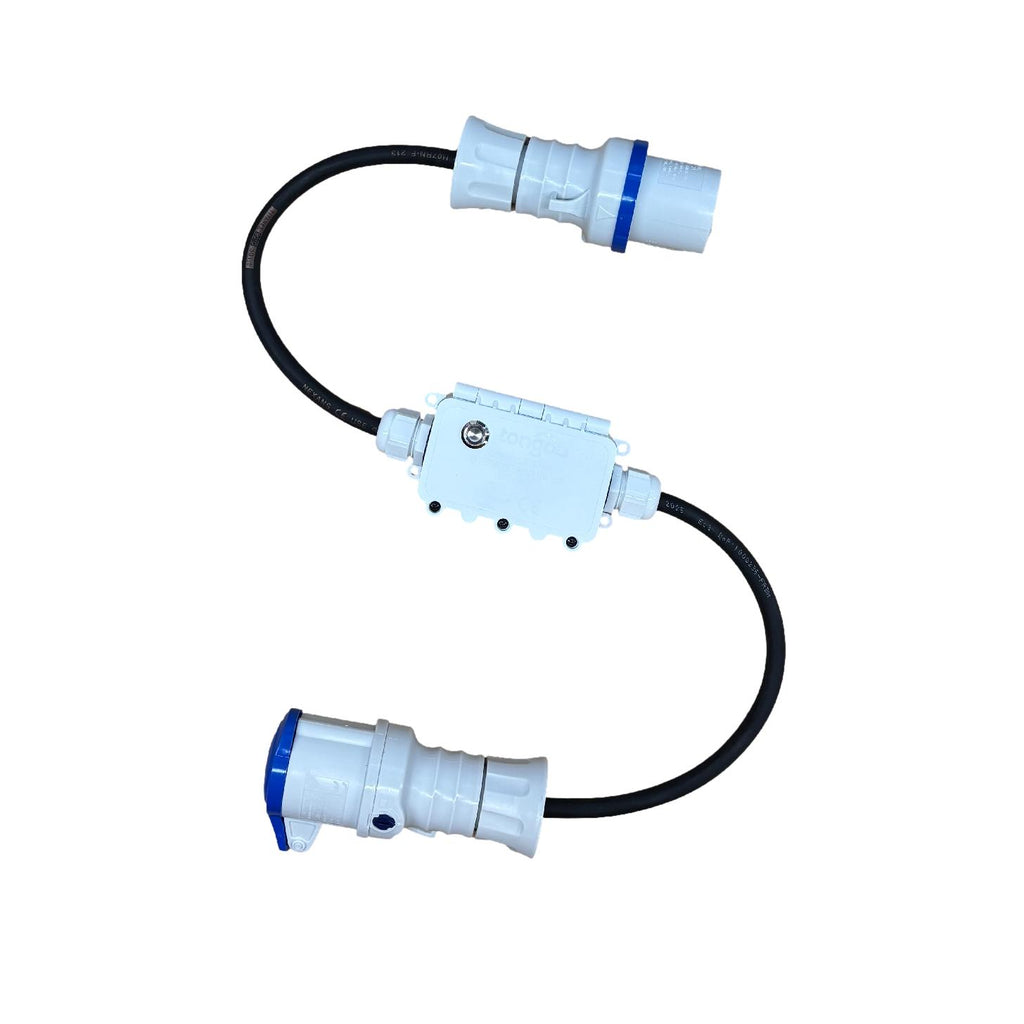

- Option of 230v 16A heavy duty CEE IEC 60309 16A plug and socket (commonly referred to as industrial, commando or camping connectors) or CEE7/7 European plug/French socket. All connectors are IP44 rated.
- 0.3m either side of Wi-Fi unit industrial specification H07RN-F rubber cable, specifically manufactured for harsh environments with high mechanical, chemical, water and UV resistance. Flexibility and performance is retained over a wide temperature range (-25 to 55°C). Find out what’s so special about this cable.
Wi-Fi switch specification:
- Weatherproof in-line Wi-Fi switch L140 x W62 x H42mm
- Maximum load 16A (resistive).
- Uses the popular Tuya automation platform, making it compatible with the SmartLife and Tuya apps, as well as the manufacturer's ENER-J version.
- Simply to connect to Wi-Fi, install one of the compatible apps and follow the instructions provided.
- Can be integrated with Google Home, Amazon Alexa and other Wi-Fi based platforms.
- Wireless frequency - 2.412-2.484GHz
