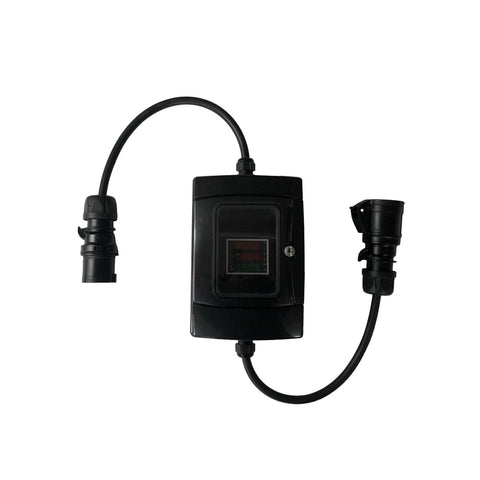

Developed in response to customer demand, our all black range provides the perfect solution for monitoring power use at events. The versatile meter provides a live, visible reading of 6 parameters, together with resettable cumulative kWh.
Also available with a grey enclosure here. See our Power Meter Selection Guide for further information.
 |
A padded bag is available separately to store the meter in between use. |
Meter specification:
- Manufactured in our UK workshop, this versatile meter simply plugs in-line with the supply and provides a live reading of six different parameters:
- Pressing the button alternates the three parameters displayed:
- Power factor + frequency + energy kWh
- Voltage + current + power
- The kWh energy reading is cumulative and can be reset. If you require a kWh meter for billing purposes, please see our range of MID approved meters.
Unit specification:
- Available with 230v 16A and 32A IEC 60309 black connectors.
- Robust black IP65 weatherproof DIN enclosure (overall dimensions W215mm x H145mm x D110mm).
- Lockable front cover to prevent tampering (key is universal for all units).
- Power meter is protected by an internal replaceable fuse.
- 0.3m input and output leads, using industrial specification H07RN-F rubber cable, specifically manufactured for harsh environments with high mechanical, chemical, water and UV resistance. Flexibility and performance is retained over a wide temperature range (-25 to 55°C). Find out what’s so special about this cable.
- Please contact us for custom cable lengths.
- PAT tested.
Connector Options:
Please use the guide below to ensure that the correct connectors are ordered, using the colour and diameter if unsure. N.B. The unit is supplied with all black connectors - colours are used below to aid identification.
| Connector | Details |
 |
230v 16A CEE7/7 European
|
 |
230v 16A IEC 60309
|
|
230v 32A IEC 60309
|
