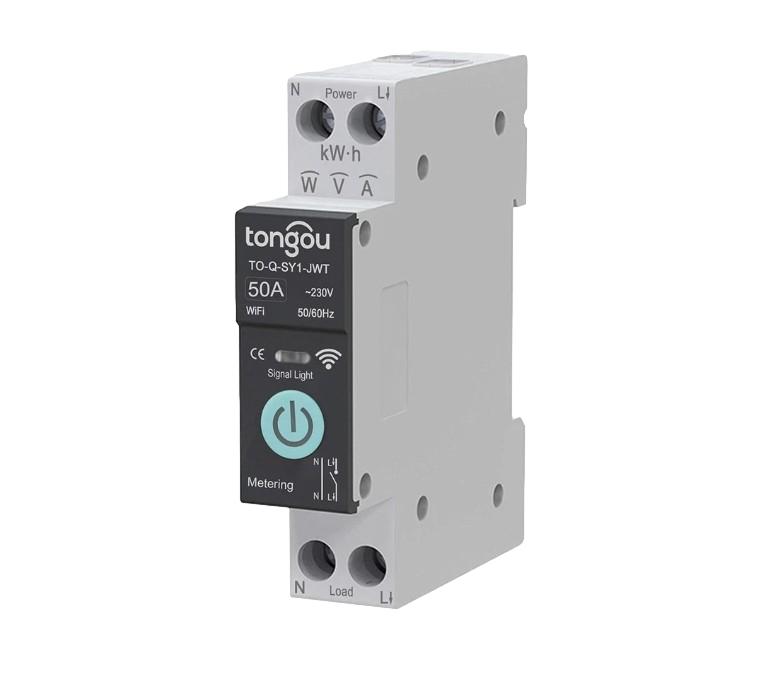

Versatile DIN module which operates via Wi-Fi on the popular TUYA platform. The module can be programmed using either the Tuya or Smart Life App and can be integrated with Google Home, Amazon Alexa and other Wi-Fi based platforms. Functions within the Smart Life App include:
- Manual off/off control via any IoS Apple or Android phone or tablet.
- Countdown timer - The unit will turn on after the pre-set time.
- Maximum duration timer - When turned on the unit will only operate for a defined maximum period of time.
- Scheduled timer e.g. On Monday 07:00, off Monday 17:00.
- Random timer - Unit will turn on and off randomly during pre-set times.
- Scenes - Can be triggered by a separate (not supplied) senor or Wi-Fi button e.g. a PIR sensor.
- Can be set to remember the last state in the case of power failure.
- Switch log records all activity.
- Please contact us for alternative Zigbee or eWeLink versions.
A Wi-Fi connection is required to enable the unit to be switched on/off, or for the timer to be programmed. However, once programmed, the timer function will continue to operate without Wi-Fi. Where Wi-Fi is not available at all, a stand alone plug in timer is also available here.
Module specification:
- 90-240v
- Maximum load 32A resistive
- Single pole switching
