Range of weatherproof adaptors to enable a granny charger with a UK 13A plug to be connected to a wide range of sockets at camp sites, marinas and industrial premises.

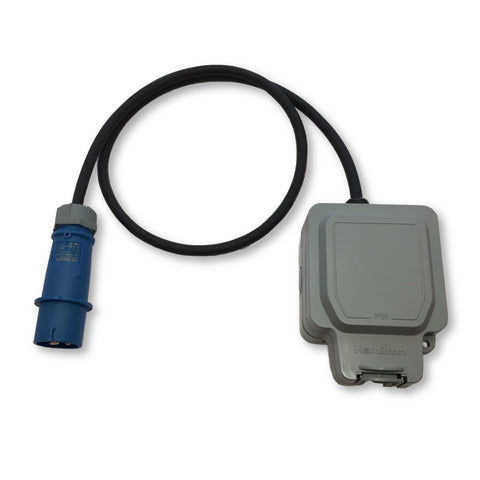

Standard CEE Plug Versions
The picture below illustrates a typical application; an EV charger with a UK 13A plug is connected to a 230v 16A hook up, commonly found at campsites and marinas.
The socket enclosure houses a high quality single socket.
T Connector Version
Developed following customer requests for a lead that enabled an EV to be charged from a campsite 230v 16A 'hook-up', whilst also allowing the caravan/motorhome to remain connected. The lead has a special connector which is a combined 230v 16A plug and socket. It simply plugs in between the campsite hook up socket, and the hook up lead plug, to provide a weatherproof socket to connect a granny charger.
The picture below illustrates a typical application; an EV charger with a UK 13A plug is connected to a 230v 16A hook up, commonly found at campsites and marinas.
Adaptor Options
Adaptors are available in a range of options to fit the majority of industrial sockets across the UK and Europe. It can sometimes be difficult to identify the different types of sockets - a useful tip is to use the diameter stated under each picture.
|
43mm diameter |
Campsite and Marina Hook Ups - 230v 16A Blue Sockets (IEC 60309) Enables connection to the blue 16A sockets which are found at campsites and marinas across Europe. N.B. The Tesla mod 2 UMC may have been supplied with a 16A plug adaptor (or it can be purchased separately), which can be connected to 230v 16A sockets directly, for faster charging rates. |
|
57mm diameter |
230v 32A Blue Sockets (IEC 60309) Enables connection to blue 32A sockets which are commonly used in industrial locations and power installations at temporary sites. N.B. The Tesla mod 1 UMC and Audi E-tron are supplied with a 32A plug adaptor, which can be connected to 230v 32A sockets directly, for faster charging rates. |
|
56mm diameter |
415v 16A Red Sockets (IEC 60309) Enables connection to these sockets, which are commonly used in industrial locations and power installations at temporary sites. The adaptor is only compatible with 5 pin sockets (L1, L2, L3, N And E), as EVs require a neutral connection. |
|
63mm diameter |
415v 32A Red Sockets (IEC 60309) Enables connection to these sockets, which are commonly used in industrial locations and power installations at temporary sites. The adaptor is only compatible with 5 pin sockets (L1, L2, L3, N And E), as EVs require a neutral connection. N.B. The Tesla mod 1 UMC and Audi E-tron are supplied with a 32A plug adaptor, which can be connected to 415v 32A sockets using our 415v 32A to 230v 32A adaptor, for faster charging rates. |
Specification:
- Weatherproof IP66 rated high quality Hamilton branded socket. An IP66 rating means that the socket is protected against powerful water jets.
- To guard against unauthorised access, the socket can be locked shut with a small padlock (max 5.5mm diameter) available here.
- Industrial plug (Menneke, Gewiss or PCE).
- 0.8m of industrial specification H07RN-F rubber cable (1.5mmsq for 16A, 4mmsq for 32A), specifically manufactured for harsh environments with high mechanical, chemical, water and UV resistance. Flexibility and performance is retained over a wide temperature range (-25 to 55°C). Find out what’s so special about our cables.
- PAT tested.
If you require an adaptor which is not listed, please do get in touch, as we can make adaptors for almost any international socket, many from stock.
